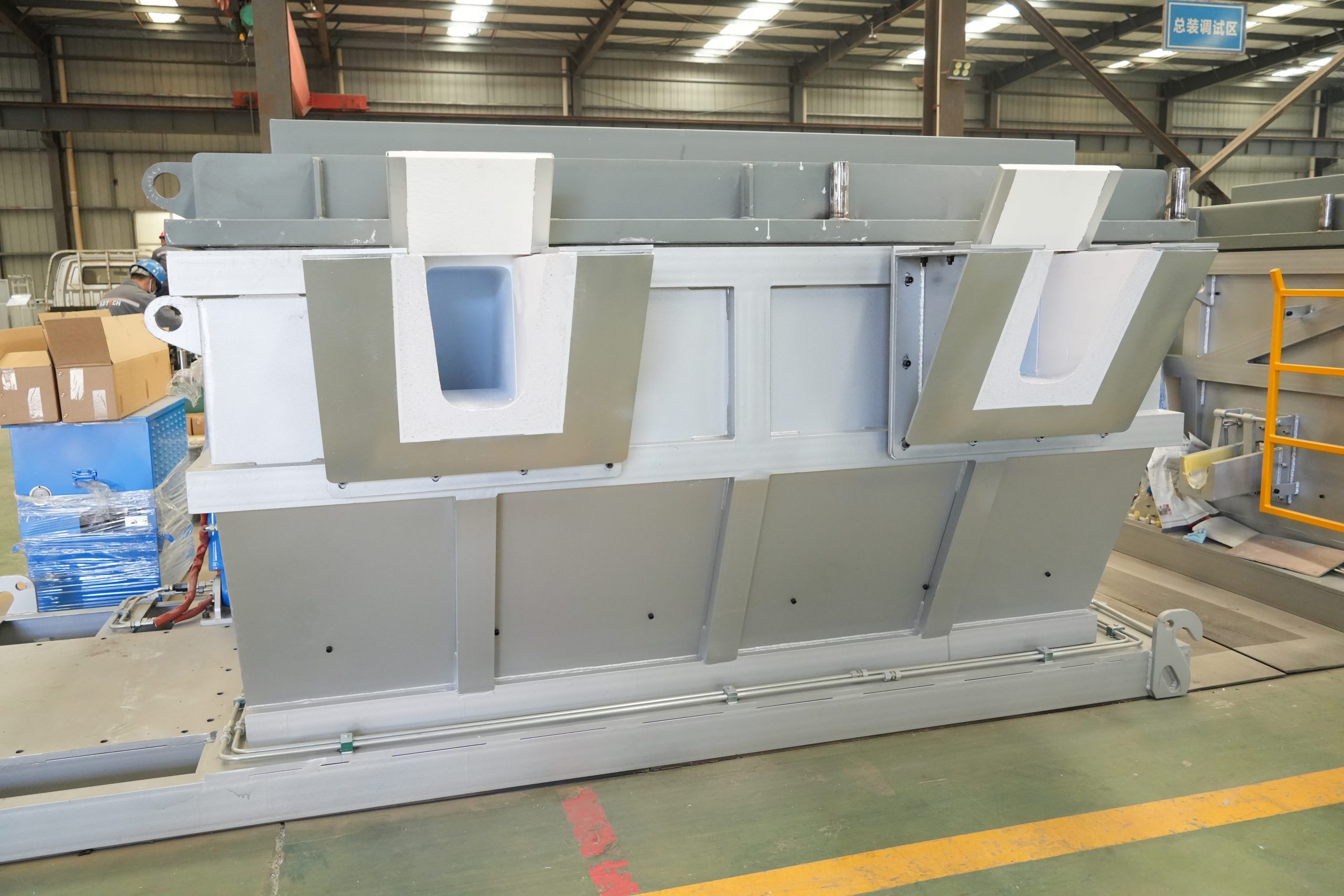

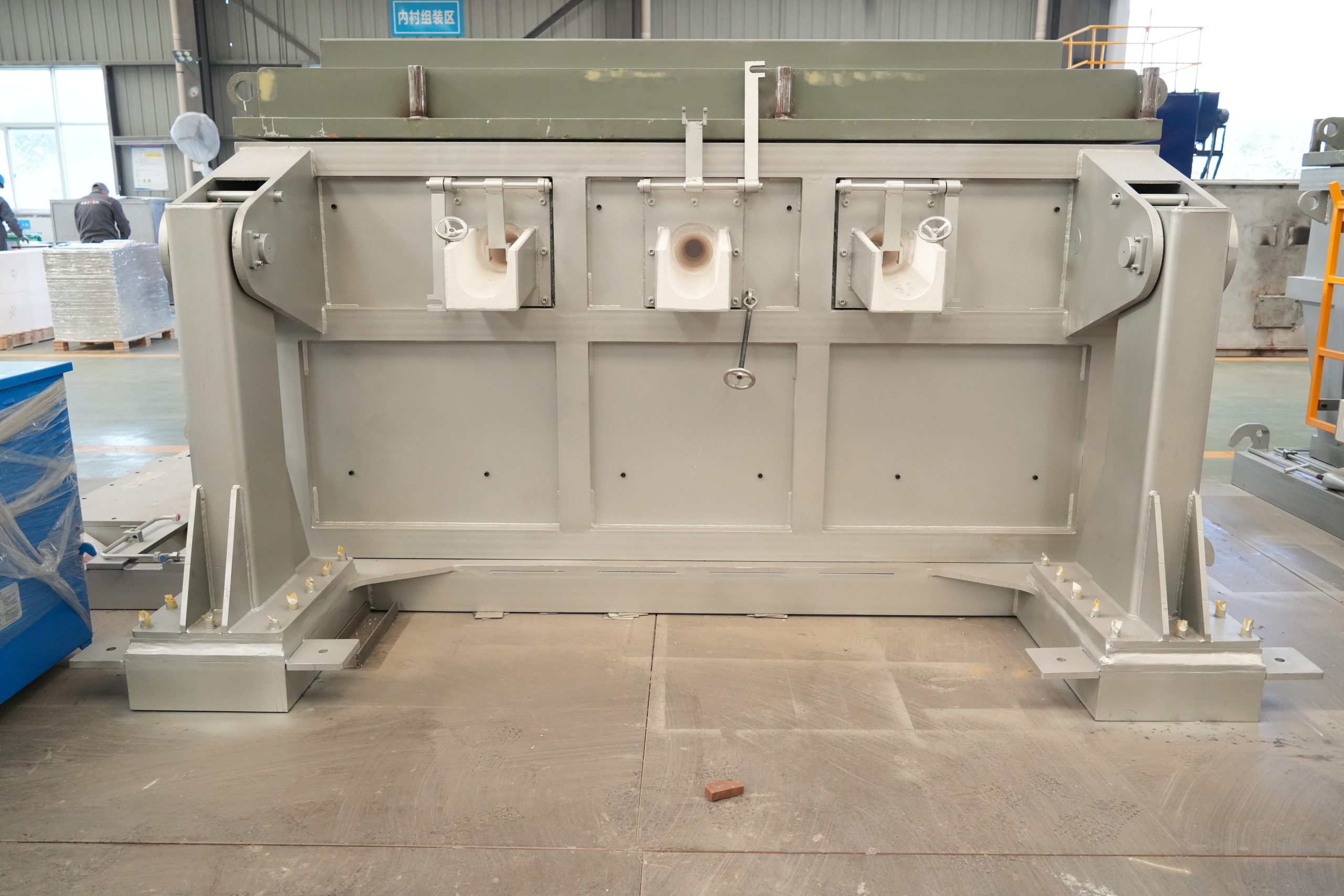

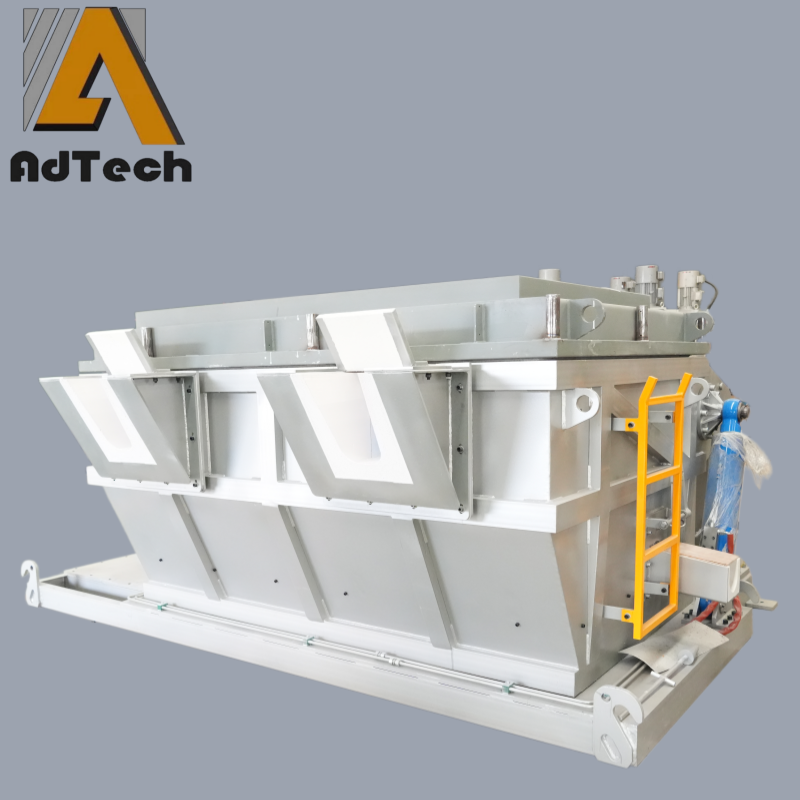

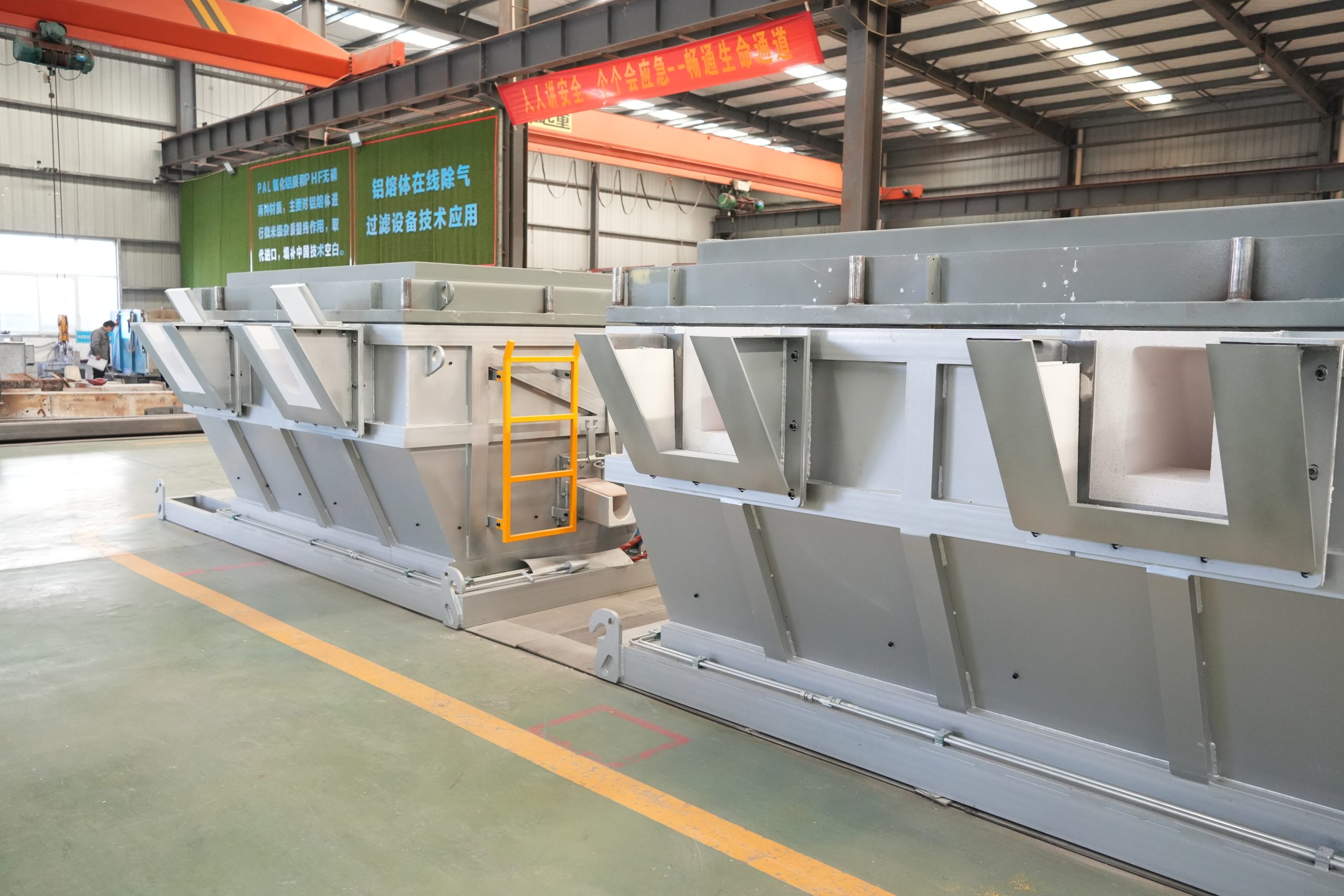

Deep Bed Equipment

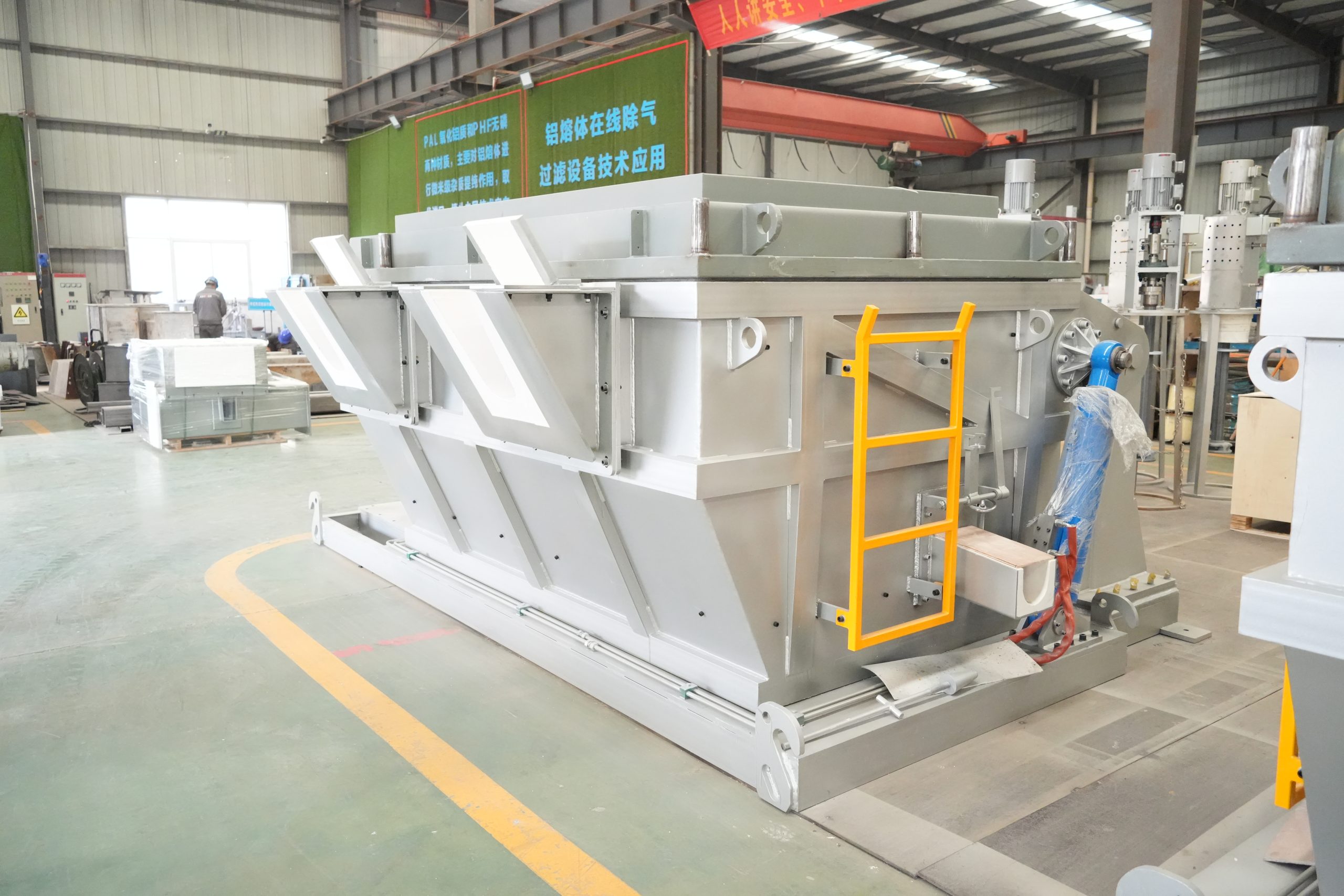

Deep Bed Equipment is an advanced molten aluminum filtration system designed for deep purification of aluminum melt through a multi-layer packed filter media bed.

Unlike surface filtration methods, it utilizes the full depth of the filtration media to remove fine non-metallic inclusions such as oxides and impurities. As molten aluminum flows through high-purity alumina-based media, contaminants are captured through interception, impaction, sedimentation, and adsorption mechanisms, ensuring highly efficient purification.

The system provides stable continuous operation and significantly improves melt cleanliness, reducing casting defects and enhancing final product quality. It is widely used in slab, strip, and high-end aluminum alloy production lines, especially where strict requirements for surface quality and metallurgical purity are needed.

Scroll down for more information

Deep Bed Filtration Principle

The molten aluminum enters through the inlet of the deep bed equipment, and after being filtered by the filter bed (filter medium), impurities in the molten aluminum are removed, and the pure molten aluminum flows out from the outlet of the deep bed.

Deep Bed Filter Equipment – Technological Design Innovation

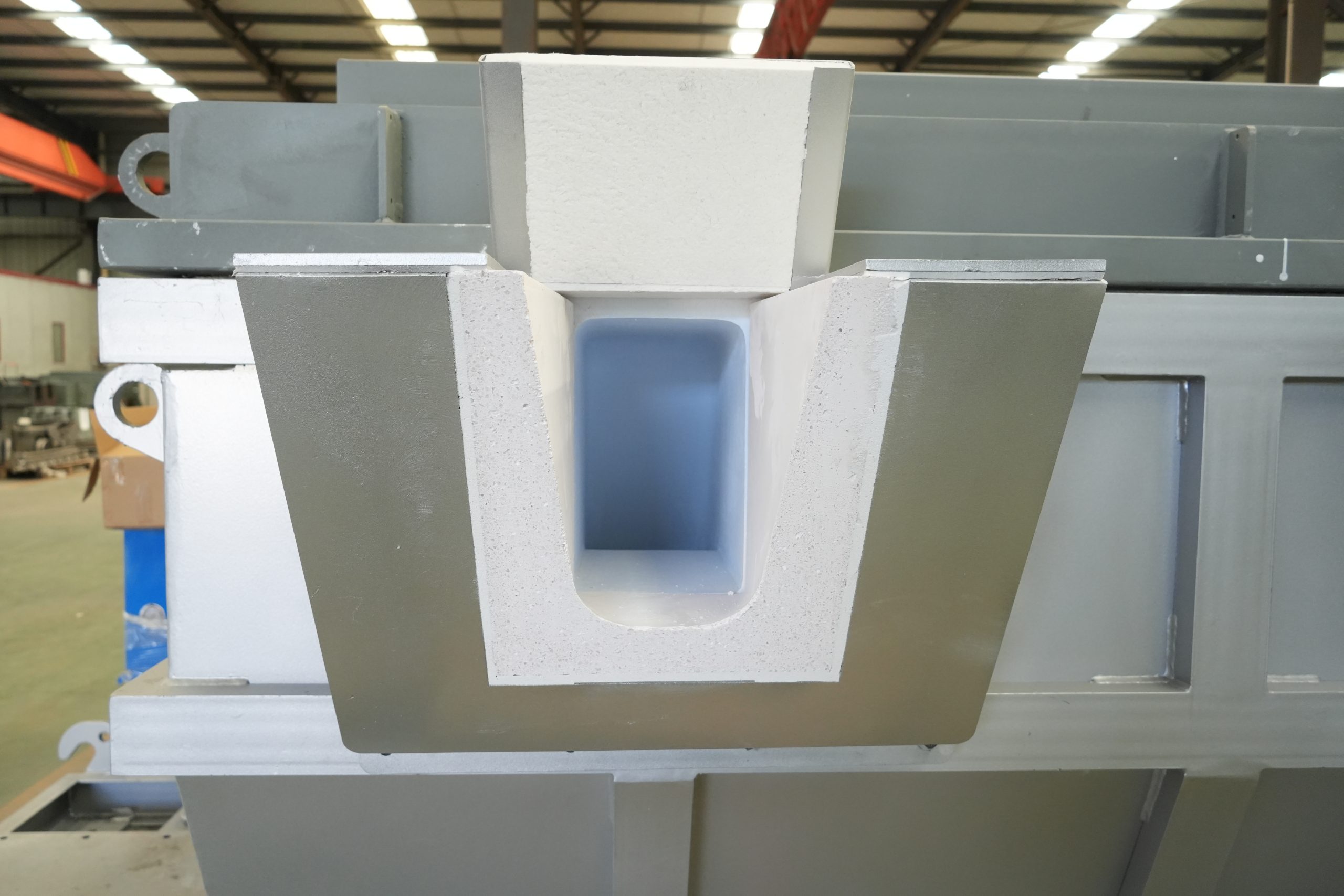

1. The enclosure is lined with high-silica series, corundum mullite series, silicon carbide series, etc., with materials selected according to the working conditions. All materials are produced through high-temperature firing.

2. The materials feature good non-lubricity, erosion resistance, thermal shock resistance, corrosion resistance, and low thermal conductivity.

3. Designed for batch and continuous production lines, it replaces plate-type filter equipment, increasing filtration capacity and ensuring stable product quality.

4. Reduces labor costs and unnecessary energy consumption.

5. Enables semi-automation of production, comprehensively reducing production costs.

Deep Bed Equipment Control System

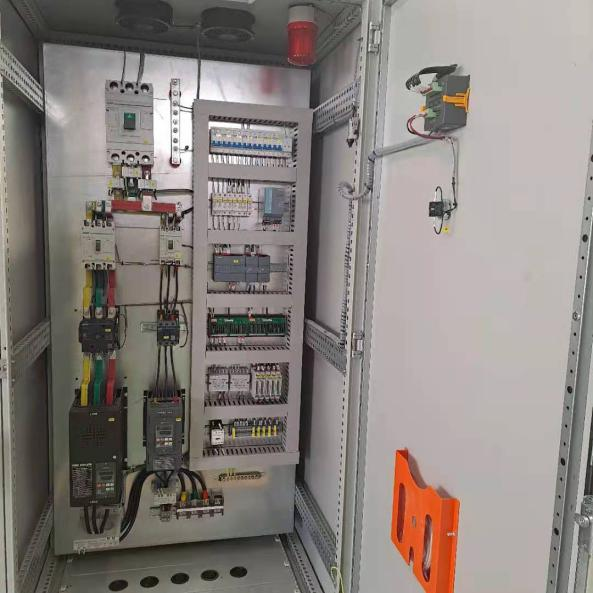

Programmable Logic Controller

It is equipped with a power supply and PLC control system. The PLC (Programmable Logic Controller) with a touchscreen allows modification of all filter parameters and provides fault alarm functions. It can perform preheating, insulation, and heating functions for the chamber. Heater power and fault information are displayed clearly on the control panel. The heating system uses a power regulator for control, with automatic and manual control modes; in automatic mode, it uses PID closed-loop control. The intelligent temperature controller on the control panel displays the temperature of the heater and the molten pool, and allows setting the setpoints for each temperature control point. The heating system has undervoltage and overcurrent protection; and alarms for leakage faults, fuse failures, and power regulator failures.

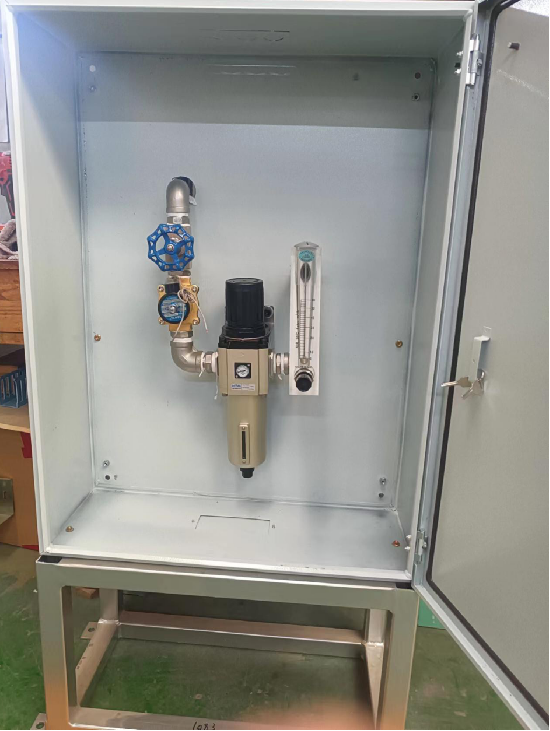

Compressed air system

Function: To ensure that the compressed air entering the upper part of the deep bed oven has appropriate pressure and flow rate, so as to ensure that the heat in the upper part of the deep bed oven is carried to the lower part of the oven through the compressed air, making the deep bed oven baking and preheating more uniform and shortening the heating time.

Deep Bed Filter Equipment is widely used in molten aluminum treatment systems requiring high filtration precision and stable continuous casting performance.

Typical Applications

Aluminum billet casting
Rolling slab casting
Foil stock production
High-quality wrought alloy production
Continuous casting lines
Recycled aluminum melt treatment
Large-scale aluminum casting operations

Suitable Industries

Automotive aluminum alloys
Aerospace aluminum materials
Electronics aluminum materials
Packaging aluminum products
Rail transit materials
Photovoltaic aluminum materials
High-purity aluminum alloy production

Typical Filtration Functions

Removal of oxide inclusions
Removal of slag particles
Fine molten aluminum purification
Stabilization of melt flow
Improvement of downstream processing quality

Deep bed filtration systems are commonly used together with online degassing units, launders, cartridge filtration systems, and ceramic foam filters for complete molten aluminum treatment solutions.

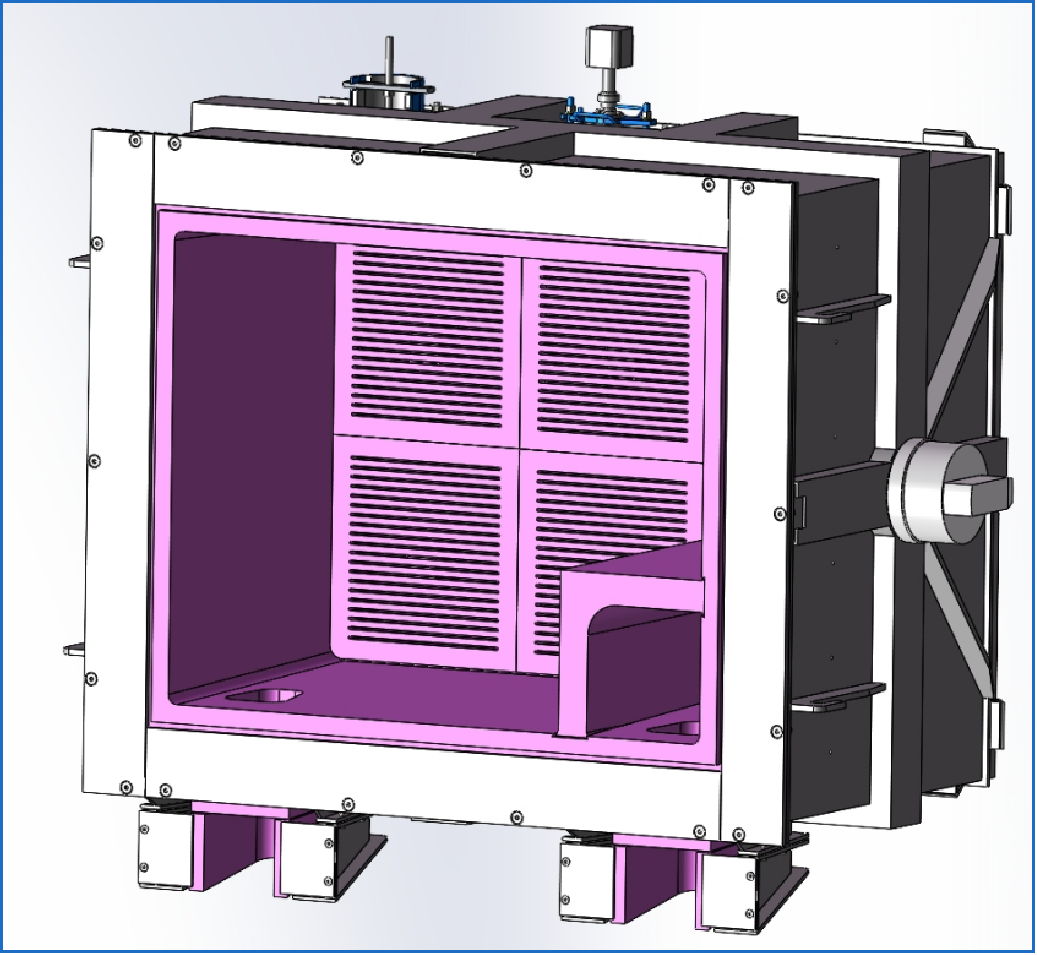

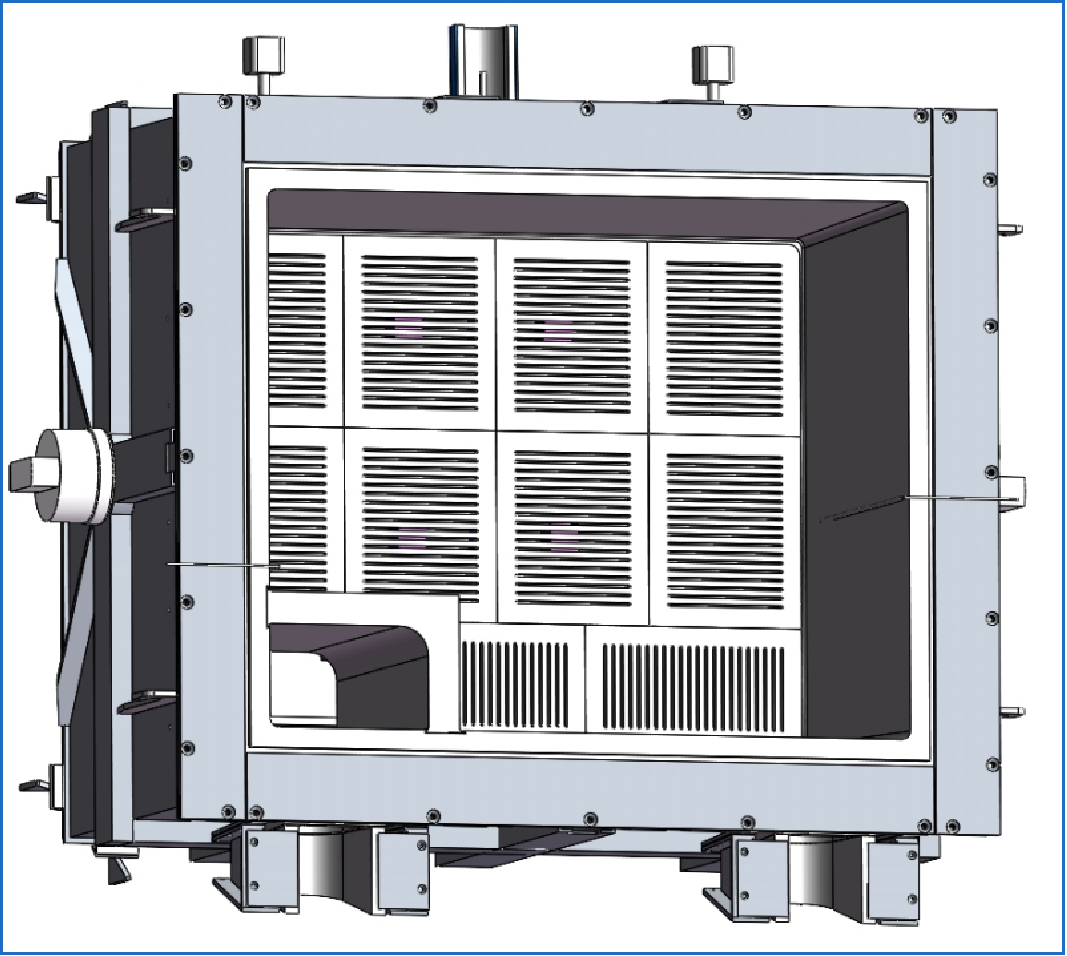

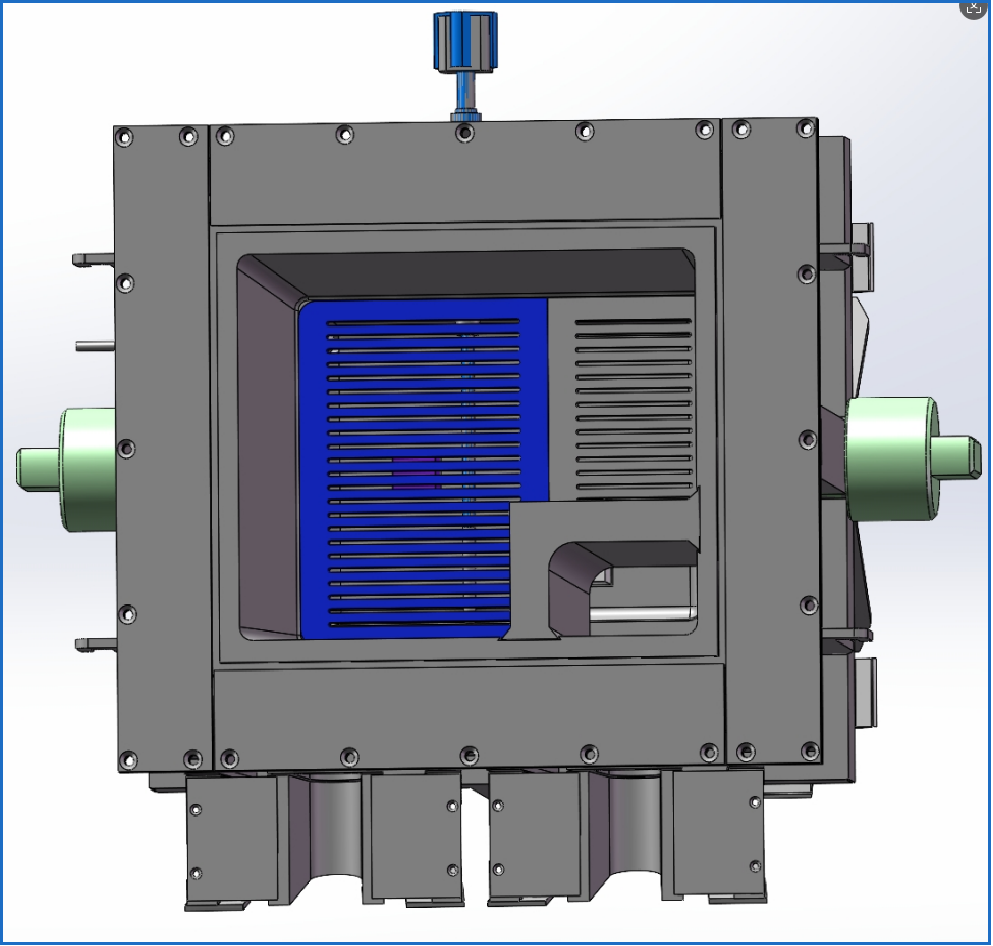

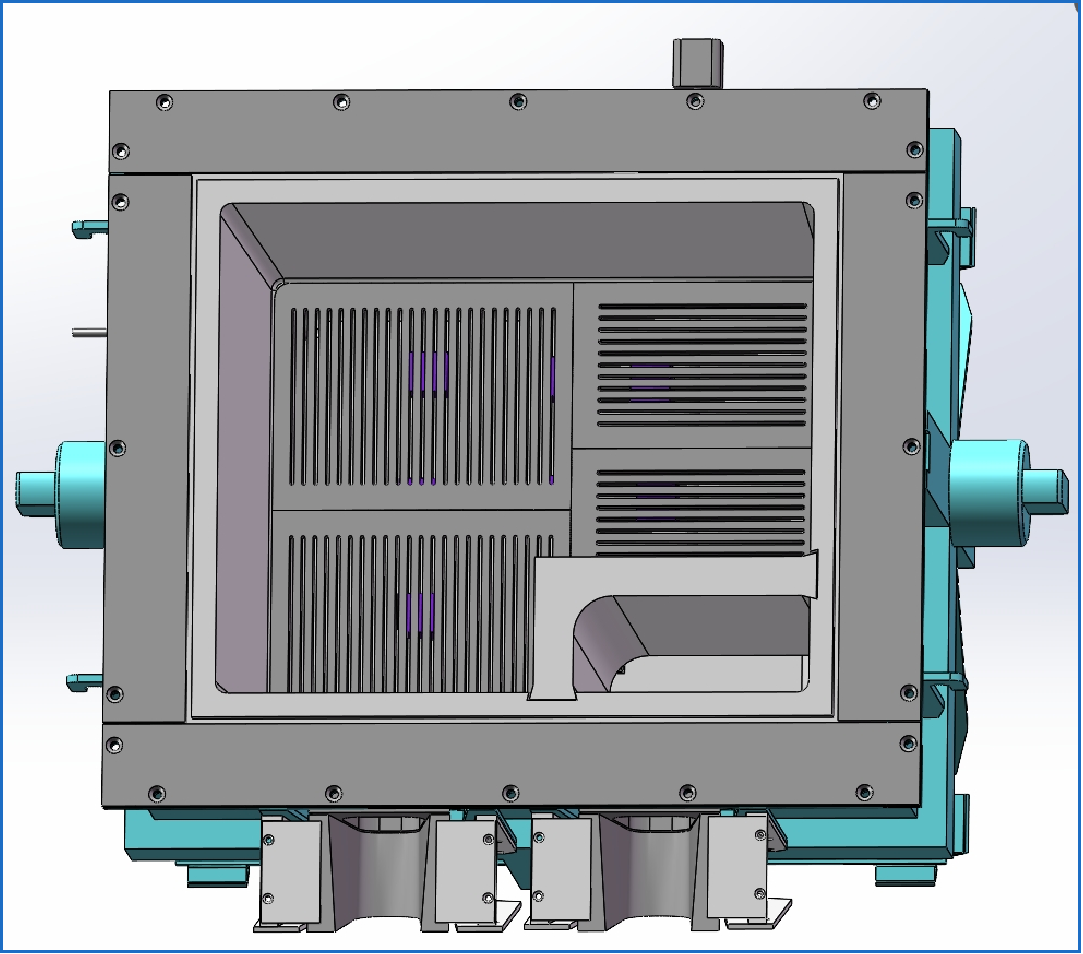

Deep Bed Filter Equipment – Various Structures

Advantages of deep bed filtration compared to plate-type filtration:

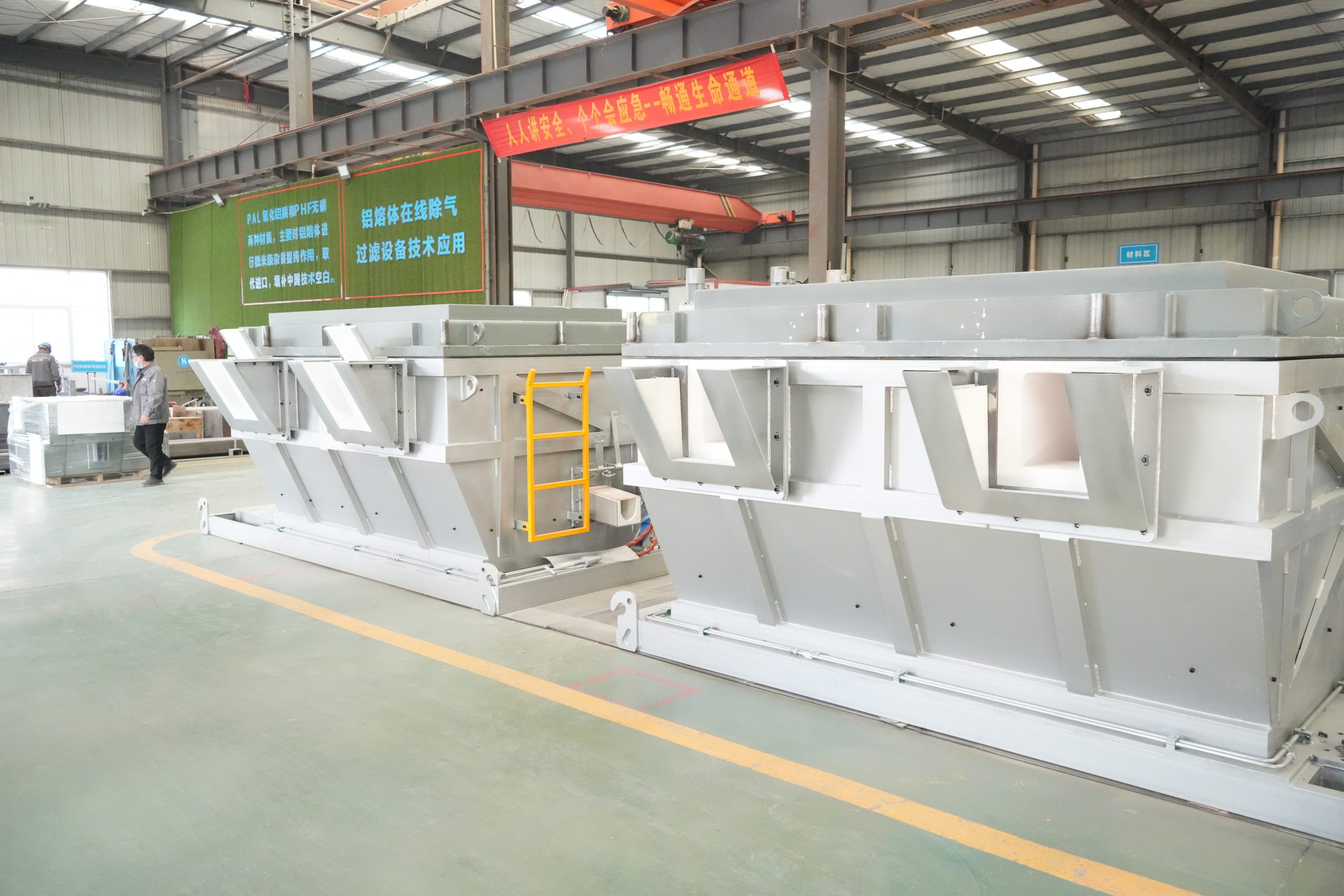

1. Larger filtration capacity: Deep bed filtration can handle over 5500 tons per cycle, while plate-type filtration can handle less than 200 tons per cycle. 2. Longer service life: Plate-type filtration requires daily CFF replacement. 3. Less energy waste: Plate-type filtration requires approximately 4 hours of preheating before each CFF replacement. 4. Better product quality stability: Plate-type filtration quality is highly dependent on the skill of the operator during CFF replacement. 5. Lower labor intensity: Plate-type filtration requires daily CFF replacement at high temperatures, posing a greater risk. 6. Higher degree of automation: Deep bed filtration systems offer greater automation than plate-type filtration. 7. Deep bed unit: one in use and one on standby, allowing for continuous production and shortening production cycles.

For batch, continuous production lines, it replaces plate-type filter equipment, increasing filtration capacity and ensuring consistent product quality. It reduces labor costs and unnecessary energy consumption (compared to plate-type filter equipment); It also enables semi-automation of production, comprehensively reducing production costs, thanks to its automatic tilting device.

Deep Bed Filter Equipment is commonly integrated with complete molten aluminum purification systems for improved casting quality and operational stability.

Online Degassing Unit

Removes dissolved hydrogen and helps reduce gas porosity before filtration.

Launder System

Transfers molten aluminum smoothly while reducing temperature loss and secondary oxidation.

Alumina Filter Media

Provides layered filtration structure for efficient inclusion removal and stable filtration performance.

Cartridge Filtration System

Can be combined for large-capacity molten aluminum treatment applications.

Ceramic Foam Filter

Often used as a secondary or final-stage filtration solution.

Refractory Insulation Materials

Help maintain stable molten aluminum temperature and improve thermal efficiency throughout the filtration process.

Integrated molten aluminum treatment solutions can be customized according to alloy type, production capacity, and filtration performance requirements.
