A molten aluminum transition plate is a refractory component used in aluminum hot-top casting systems and direct chill (DC) casting applications to control the transition of liquid aluminum from the distribution system into the casting mold. By providing a stable flow path, thermal insulation, and resistance to molten aluminum corrosion, the transition plate helps maintain uniform metal distribution and consistent solidification conditions, which directly affects aluminum billet and slab quality.
Explore Our Molten-Aluminum Transition Plate
In continuous aluminum casting, the quality of the final product is influenced not only by alloy composition and melt cleanliness but also by how smoothly molten aluminum enters the mold. The transition zone between the molten metal delivery system and the solidification area is highly sensitive to turbulence, heat loss, and flow instability. A properly designed aluminum transition plate helps manage these factors and supports stable casting performance.
What Is a Molten Aluminum Transition Plate?

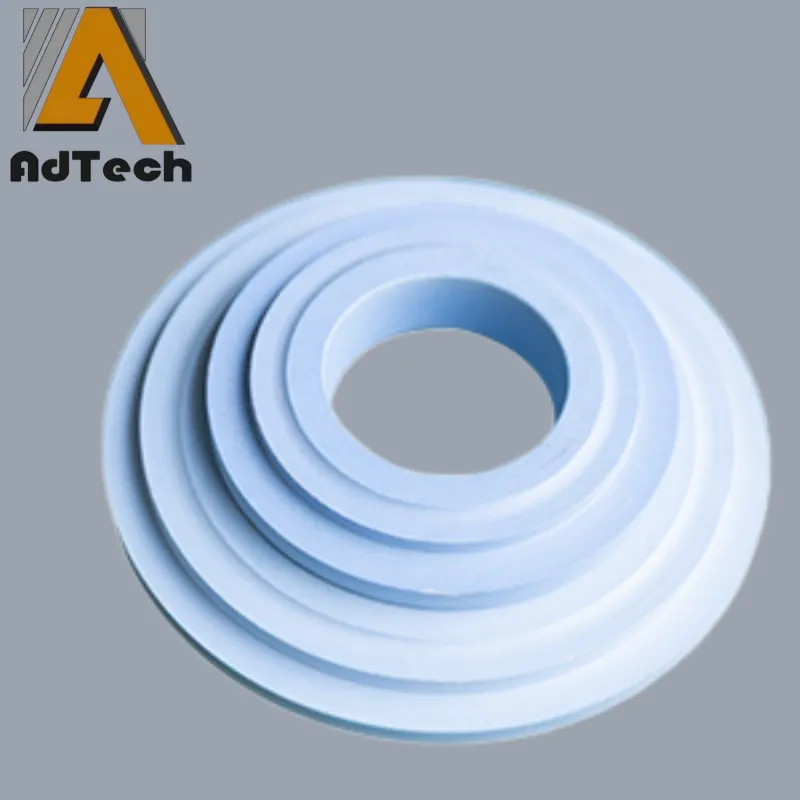

A molten aluminum transition plate is a circular refractory component installed between the molten aluminum distribution system and the casting mold in a hot-top or DC casting setup. Its primary function is to create a controlled transition area where molten aluminum can enter the mold with stable flow conditions.
Unlike structural parts that simply support the casting equipment, the transition plate directly interacts with the thermal and fluid conditions of the casting process. It must withstand:
- Continuous contact with molten aluminum
- Repeated heating and cooling cycles
- Thermal shock during casting operation
- Chemical attack from liquid aluminum
- Mechanical stress caused by temperature changes
The transition plate is usually manufactured from high-performance refractory materials with low wettability toward molten aluminum. This reduces aluminum penetration and helps maintain the dimensional stability of the component during long casting cycles.
The typical position of the transition plate in an aluminum casting system is shown below:
| Casting Section | Main Function |
|---|---|
| Holding furnace | Maintains molten aluminum supply |
| Launder system | Transfers molten aluminum to casting area |
| Distribution area | Controls metal delivery to mold |
| Transition plate | Stabilizes flow and thermal conditions |
| Mold | Initiates aluminum solidification |
Because it is located close to the solidification zone, even small changes in the transition plate design can influence billet surface quality, casting stability, and operational reliability.
Where Is a Transition Plate Used in Aluminum Casting?
A transition plate is mainly used in aluminum hot-top casting systems and direct chill (DC) casting processes, especially for applications requiring stable billet or slab production.
In these casting methods, molten aluminum must enter the mold at a controlled rate while maintaining an appropriate temperature gradient. Excessive turbulence or uneven heat transfer can create casting defects such as surface irregularities, inconsistent grain structure, or unstable solidification.
Common applications include:
| Application | Casting Product | Why Transition Plates Are Used |
|---|---|---|
| Aluminum billet casting | Extrusion billets | Maintain stable metal flow and solidification |
| Aluminum slab casting | Rolling slabs | Support uniform temperature distribution |
| Direct chill casting | Large-scale aluminum production | Improve casting consistency |
| Hot-top casting | Continuous casting systems | Reduce flow disturbance near mold entry |
For aluminum producers, the transition plate is not an isolated component. It works together with other hot-top casting system components, including launders, molds, and distribution devices, to maintain a stable casting environment.
Learn More About Our Molten-Aluminum Treatment
How Does a Transition Plate Control Molten Aluminum Flow?
The movement of molten aluminum before solidification has a significant effect on casting quality. When liquid metal enters the mold with unstable flow, it can create turbulence, oxide entrainment, and uneven filling conditions.
A well-designed aluminum transition plate provides a smoother passage between the distribution system and mold area. Its geometry helps reduce sudden flow changes and creates more consistent metal delivery.
The main flow-related benefits include:
| Flow Issue | Possible Effect on Casting | Role of Transition Plate |
|---|---|---|
| Excessive turbulence | Oxide formation and inclusions | Creates smoother metal transition |
| Uneven flow velocity | Non-uniform solidification | Supports balanced distribution |
| Sudden direction changes | Flow instability | Provides controlled passage |
| Metal splashing | Increased oxidation | Helps maintain stable flow |
However, a transition plate does not replace aluminum melt purification processes such as degassing or filtration. Its purpose is different.
- Degassing equipment removes dissolved hydrogen.
- Ceramic foam filters remove non-metallic inclusions.
- Transition plates control metal transfer and thermal conditions during casting.
These processes work together to improve overall aluminum casting quality.
How Does a Transition Plate Affect Heat Transfer During Casting?
Thermal management is one of the most important functions of a refractory transition plate.
During aluminum DC casting, molten aluminum must remain liquid until it reaches the correct solidification location. Excessive heat loss before entering the mold can cause premature solidification, while insufficient thermal control can create unstable freezing conditions.
The transition plate helps regulate heat exchange between molten aluminum and surrounding components through its refractory structure.
Important thermal factors include:
| Factor | Influence on Casting |
|---|---|
| Thermal conductivity | Determines heat transfer rate |
| Material structure | Affects insulation performance |
| Thickness design | Influences thermal stability |
| Thermal shock resistance | Determines service durability |
A properly selected transition plate helps maintain a more consistent temperature field around the mold entrance. This supports more predictable solidification behavior and reduces variations during continuous casting.
What Materials Are Used for Aluminum Casting Transition Plates?
The material selection of a transition plate directly affects its service life and casting performance. Since the component operates in direct contact with molten aluminum, the refractory material must provide:
- Low reaction with aluminum
- Good thermal insulation
- Resistance to thermal cycling
- Structural stability at elevated temperatures
Common material options include:
| Material | Characteristics | Typical Application |
|---|---|---|
| Aluminum Silica | Balanced thermal performance and corrosion resistance | Standard aluminum casting applications |
| High Fused Silica New140 | Improved thermal stability and lower thermal expansion | Specialized casting conditions |
| N17 refractory material | Higher durability under demanding conditions | High-performance casting operations |
Different casting systems may require different material properties. For example, a high-speed production line may prioritize thermal shock resistance and service life, while a standard billet casting operation may focus on cost balance and stable performance.
Why Does a Transition Plate Need High Resistance to Molten Aluminum?
Molten aluminum is highly reactive with many materials. During long casting operations, refractory components may experience aluminum penetration, chemical interaction, and erosion.
A poor-quality transition plate can gradually lose dimensional accuracy because molten aluminum enters pores or reacts with the refractory structure. This may lead to:
- Reduced service life
- Flow changes during operation
- Increased maintenance frequency
- Casting instability
A high-quality refractory component minimizes these problems by using materials designed specifically for molten aluminum contact.
The main resistance requirements are:
| Resistance Property | Purpose |
|---|---|
| Aluminum corrosion resistance | Prevent chemical degradation |
| Low aluminum wettability | Reduce metal penetration |
| Thermal shock resistance | Handle repeated temperature changes |
| Dimensional stability | Maintain accurate fitting |
For continuous aluminum casting, maintaining the original shape of the transition plate is important because small dimensional changes can affect molten metal distribution.
What Problems Can Occur If a Transition Plate Performs Poorly?
Although the transition plate is a relatively small component in the overall casting system, its condition can influence casting stability.
Common problems include:
| Problem | Possible Cause |
|---|---|
| Unstable metal flow | Incorrect design or dimensional change |
| Billet surface defects | Poor thermal balance near mold entry |
| Short service life | Insufficient thermal shock resistance |
| Aluminum penetration | Unsuitable refractory material |
| Frequent replacement | Low structural durability |
It is important to understand that casting problems are usually caused by multiple factors. Melt quality, casting speed, cooling conditions, mold design, and refractory components all interact with each other.
Therefore, selecting a transition plate should be based on the complete casting system rather than only the component itself.
Contact Us for technical consultation
How Do You Choose the Right Transition Plate for Aluminum Casting?
Selecting the correct hot-top casting transition plate depends on several operating conditions, including casting equipment design, alloy type, production requirements, and thermal conditions.
Key selection factors include:
| Selection Factor | Why It Matters |
|---|---|
| Casting system design | Ensures proper installation and compatibility |
| Billet or slab diameter | Determines component dimensions |
| Casting speed | Influences thermal and mechanical stress |
| Alloy type | Different alloys may affect corrosion behavior |
| Operating temperature | Determines refractory requirements |
Customized transition plate dimensions are commonly required because aluminum casting systems vary significantly between manufacturers and production lines.
A properly matched transition plate should provide:
- Stable molten aluminum flow
- Reliable thermal insulation
- Long operating life
- Consistent casting performance
What Is the Difference Between a Transition Plate and Other Aluminum Casting Components?
In an aluminum casting system, different components perform different functions. Confusion between these parts can lead to incorrect equipment selection.
| Component | Main Function |
|---|---|
| Launder system | Transfers molten aluminum between process stages |
| Ceramic foam filter | Removes non-metallic inclusions |
| Degassing system | Removes dissolved hydrogen |
| Transition plate | Controls flow transition and thermal conditions |
| Mold | Controls initial solidification |
The transition plate is therefore a flow and thermal management component rather than a purification device.
Its value comes from improving the stability of the casting environment where molten aluminum changes from a flowing liquid into a solidifying product.
How Does a Transition Plate Improve Aluminum Billet Quality?
The quality of aluminum billets depends on the combined performance of melt treatment, casting equipment, and process control. A molten aluminum transition plate contributes by creating a more stable casting transition zone.
Its main contributions include:
- More uniform molten aluminum distribution
- Reduced flow disturbance before solidification
- Better thermal balance around the mold entrance
- Improved consistency during continuous casting
For aluminum producers using hot-top or DC casting systems, selecting a suitable refractory transition plate is an important step toward achieving stable production and consistent billet quality.
A well-designed transition plate does not simply withstand molten aluminum; it helps create the controlled casting conditions required for reliable aluminum production.
FAQ
1. What is a molten aluminum transition plate?
A molten aluminum transition plate is a refractory component installed between the molten aluminum distribution system and the casting mold in hot-top and direct chill (DC) casting systems. It provides a controlled transition area for aluminum flow, helping maintain stable metal distribution, thermal balance, and consistent solidification conditions during casting.
2. What is the function of a transition plate in aluminum casting?
The main function of an aluminum transition plate is to control molten aluminum flow and provide thermal stability near the mold entry area. It helps reduce turbulence, maintain uniform metal distribution, and support stable solidification, which can improve aluminum billet and slab casting consistency.
3. Where is a transition plate installed in a hot-top casting system?
A transition plate is installed between components such as the distribution plate or casting thimble and the mold area in a hot-top casting system. It works together with other hot-top casting components, including launders, graphite rings, and molds, to guide molten aluminum into the casting zone smoothly.
4. How does a transition plate improve aluminum billet casting quality?
A transition plate improves aluminum billet casting quality by creating a more stable flow path and maintaining consistent thermal conditions before solidification begins. This helps reduce flow fluctuations, uneven heat transfer, and casting instability that may affect billet surface quality.
5. What materials are used for aluminum casting transition plates?
Aluminum casting transition plates are commonly manufactured from refractory materials such as aluminum silica, high fused silica, and high-performance refractory materials like N17. These materials are selected for their resistance to molten aluminum corrosion, thermal shock resistance, and dimensional stability under continuous casting conditions.
6. Does a transition plate remove impurities from molten aluminum?
No. A transition plate does not remove hydrogen or non-metallic inclusions from molten aluminum. Melt purification equipment such as degassing systems and ceramic foam filters are used for impurity removal, while the transition plate mainly controls metal flow and thermal conditions during casting.
7. Why does a transition plate need corrosion resistance against molten aluminum?
A transition plate remains in direct contact with molten aluminum for long periods, so it must resist aluminum penetration, chemical reaction, and erosion. Good corrosion resistance helps maintain the original geometry of the component and prevents contamination or instability during continuous casting.
8. How long does an aluminum transition plate typically last?
The service life of an aluminum transition plate depends on factors such as casting temperature, alloy type, casting speed, operating conditions, and refractory material selection. High-quality refractory transition plates with good thermal shock resistance and corrosion resistance can withstand repeated casting cycles under proper operating conditions.
9. How do you choose the right transition plate for a DC casting system?
Choosing the right DC casting transition plate requires considering the casting machine design, billet diameter, alloy type, operating temperature, and required service life. The dimensions and refractory material should match the specific hot-top casting system to ensure stable installation and reliable molten aluminum flow.
10. What is the difference between a transition plate and a ceramic foam filter?
A transition plate and a ceramic foam filter serve different purposes in aluminum casting. A ceramic foam filter removes non-metallic inclusions from molten aluminum, while a transition plate controls metal flow direction, thermal conditions, and the transition between the distribution system and mold during casting.
